Resemin Bolter 100
Roof Bolter for Medium to Big Sections

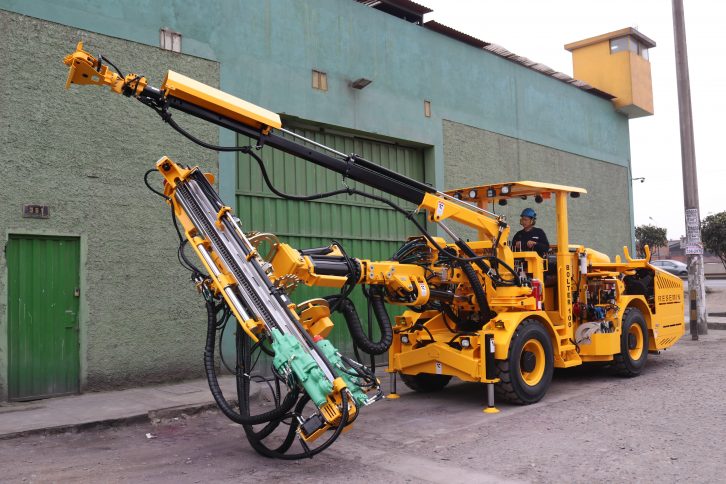

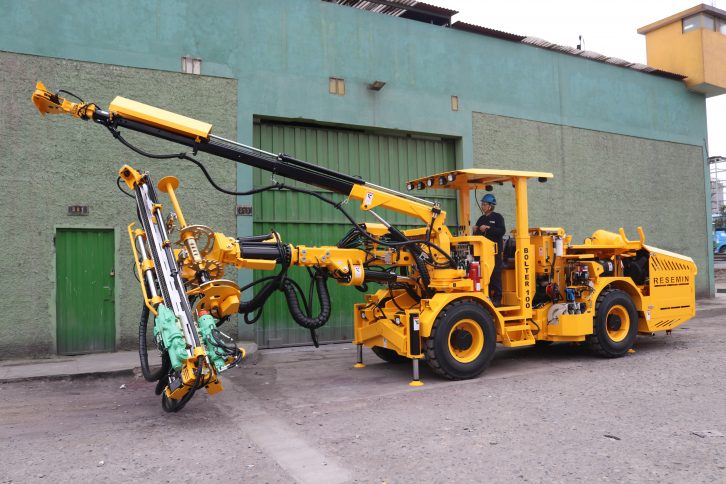

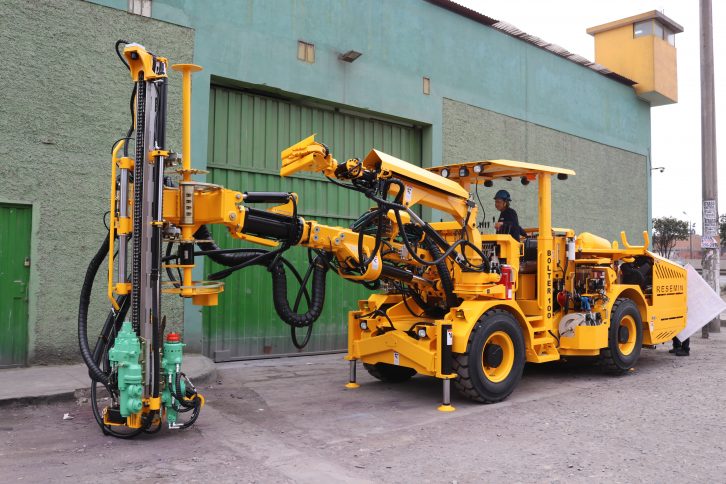

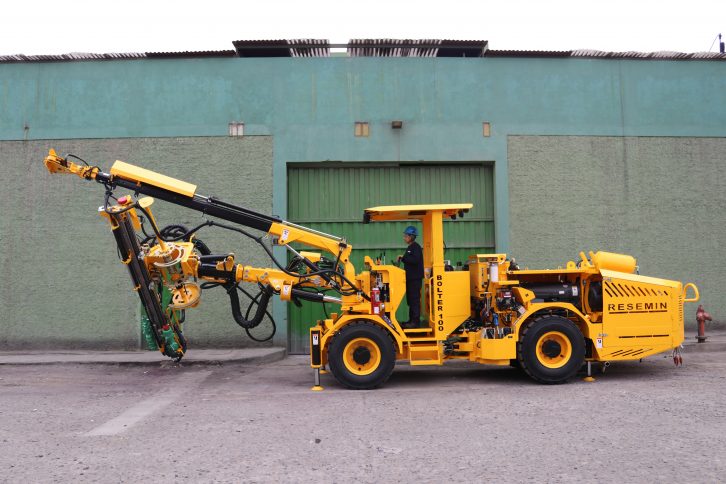

BOLTER 100 is a drilling rig for mechanized roof bolting and meshing in mine sections,
from 4×4 up to 8.5 m high.
Equipped with Bolting Turret T99 equipped with two Montabert rock drills, a HC 50 for
drilling and a HC 28 for bolting and Magazine of bolts. It can install Split Set bolts, Rebar
with resin or cement cartridges, Mechanical, Swellex, Hydrabolt, Rockbolts and Python.
The drilling feed has a centralizer design which works like Mesh Holder when the mesh is
installed on pieces. An independent boom mesh manipulator is offered as an option, allows
mechanized meshing all the entire operation combined in a safe way for the operator.
Chassis for heavy duty application, articulated 4WD, self-propelled with diesel, electro
hydraulic system for drilling.
