Description:

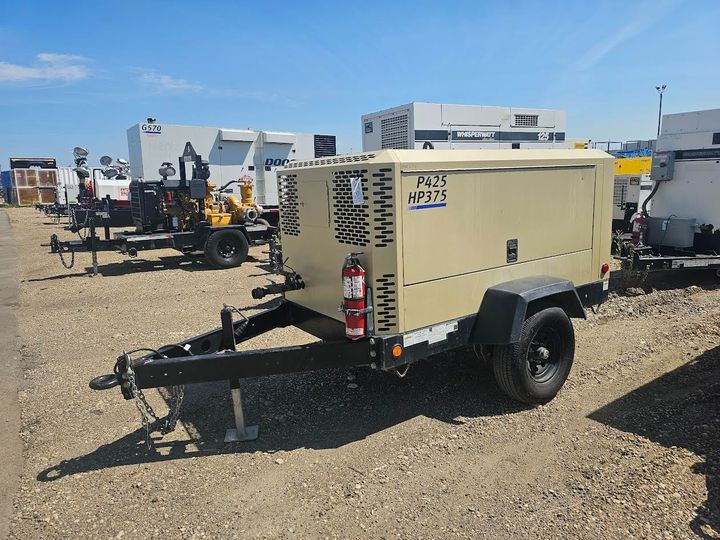

2018 Doosan HP375 Air Compressor

Free-Air Delivery - cfm (m³/min) 375 (10.6)
Rated Operating Pressure - psig (bar) 150 (10.3)
Pressure range - psig (bar) 80 - 175 (5.5 - 12.1)
Air Discharge outlet size – in (mm) 1.25 (31.8)
Air Discharge outlet Quantity 1
Fuel Tank Capacity – gal (L) 63 (239)
Make/Model Cummins/ B3.9
Emissions Tier Level Tier 2
Number of Cylinders 4
Displacement - cu in (L) 238 (3.9)
Rated Speed - rpm 2200
Idle Speed - rpm 1400
Bhp @ rated speed (kW) 125 (93.3)
Electrical - volts 12V
Hours of operation @ Full Load 9.5
Length - in (mm) 152.5 (3874)
Width - in (mm) 78.1 (1984)
Height - in (mm) 73 (1854)
Track Width – in (mm) 66.6 (1692)
Tire size – in 15
Shipping Weight w/o fuel - lb (kg) 3920 (1778)
Working Weight w/fuel - lb (kg) 4370 (1982)

Disclaimer: We always strive to provide accurate and up-to-date information; however, specifications and equipment details may contain errors and are subject to change without notice. Photos and descriptions may not reflect exact configuration or condition. Please contact us for full details and to confirm equipment availability.
