Description:

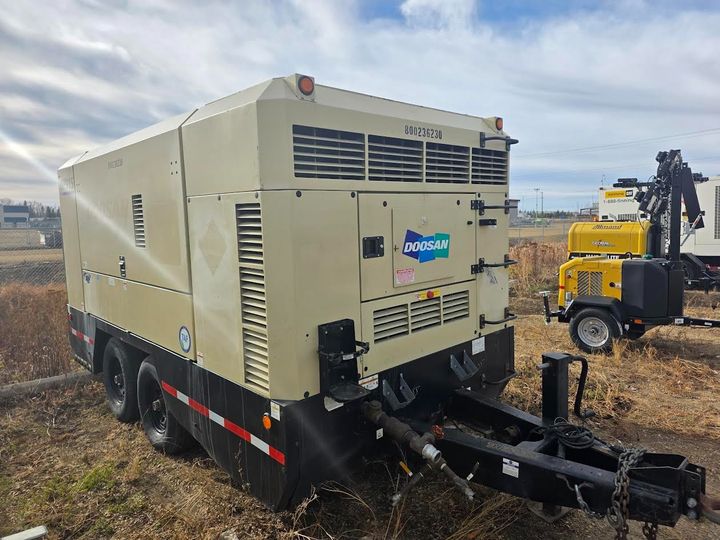

Model HP915WCU COMPRESSOR
915 & 1600 cfm |
Portable Air Compressors
Weight 10,250 lbs
Width 78″
Height 87″
Air output 915 CFM
Operating Pressure 150 PSI
ENGINE
Make/modelCummins/QSL9
Emissions Tier Level
Tier 4 Final (T4F)
Number of Cylinders
6
Displacement – cu in (L)
543 (8.9)
Rated speed – rpm
1800
Idle speed – rpm
1200
Bhp @ rated speed (kW)
305 (227.5)
Electrical – Voltage/Battery Qty
24/(2) 4D, 1000 CCA
Hours of operation @ Full Load
8,5

Free-Air Delivery – cfm (m³/min) 915 (25.9) 1600 (45.3)
Rated Operating Pressure – psi (bar) 150 (10.3) 150 (10.3)
Pressure Range – psi (bar) 80 – 175 (5.5 – 12.1) 80 – 175 (5.5 – 12.1)
Air Discharge Outlet NPT Size – in (mm) 2 (50.8) 3 (76.2)
Air Discharge Outlet Quantity 1 1 (2 WITH IQ)
Compressor Oil Capacity – gal (L) 18.5 (70) 55 (209)
ENGINE MAKE/MODEL CUMMINS/QSL-9 CUMMINS/QSX15
Emissions Tier Level Tier 3 Tier 3
# of Cylinders 6 6
Displacement – cu in (L) 543 (8.9) 915 (15)
Rated Speed – rpm 1800 1800
Idle Speed – rpm 1200 1200
Bhp @ Rated Speed (kW) 300 (223.7) 560 (417.6)
Electrical – volts/battery qty 24/(2) G31, 1000 CCA 24/(2) 8D, 1300 CCA
Engine Oil Capacity – qt (L) 24 (22.7) 88 (84)
Radiator Coolant Capacity – gal (L) 12.7 (48) 15.2 (57.5)
Altitude Capability – ft (m) 6000 (1829) 8000 (2438)
Fuel – gph (L/h) 75% load
100% load
13.3 (50.3)
14.5 (54.9) 19.5 (73.7)
25.2 (95.3)
Fuel Tank Capacity – gal (L) 140 (530) WAGON
110 (416) TANDEM 230 (870)
DIMENSIONS WITH RUNNING GEAR
Overall Length – in (mm) 163 (4140) WAGON
215 (5416) TANDEM
222 (5649) WAGON
290 (7366) TANDEM
Overall Width – in (mm) 79 (2007) 90 (2286)
Overall Height – in (mm) EXCLUDING EXH PIPE 91.2 (2316) WAGON
87.9 (2233) TANDEM
101.8 (2586) WAGON
100 (2540) TANDEM
Track Width – in (mm) 66.3 (1684) WAGON
68.5 (1740) TANDEM
71.6 (1819) WAGON
71 (1803) TANDEM
Tire Size 7.5-16LT/8-14.5LT 215/75R17.5H
Shipping Weight w/o fuel – lb (kg) 9370 (4250) WAGON
9480 (4300) TANDEM
16100 (7303) WAGON
16800 (7620) TANDEM
Working Weight w/ fuel – lb (kg) 10350 (4695) WAGON
10250 (4649) TANDEM
17790 (8069) WAGON
18490 (8387) TANDEM
DIMENSIONS WITHOUT RUNNING GEAR
Overall Length – in (mm) 153 (3886) 222.4 (5649)
Overall Width – in (mm) 79 (2007) 90 (2286)
Overall Height – in (mm) 80.4 (2042) 87.6 (2196) with shock mounts
Shipping Weight w/o fuel – lb (kg) 8920 (4046) 15350 (6963)
Working Weight w/ fuel – lb (kg) 9900 (4500) 17040 (7729)
