Description:

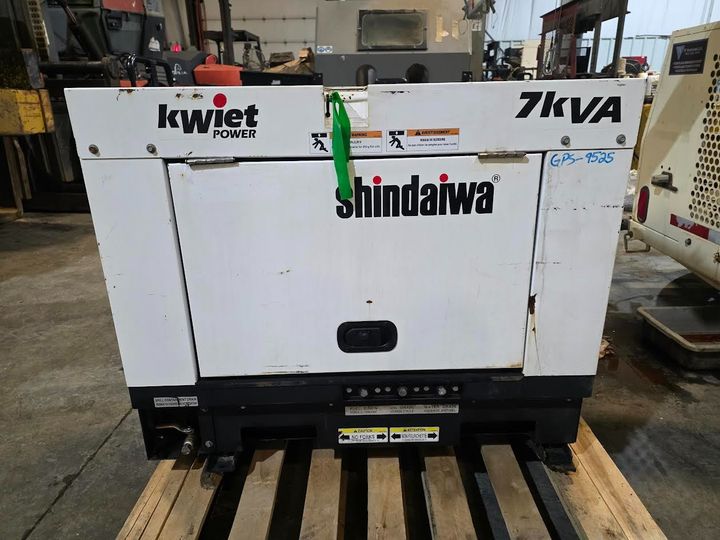

SHINDAIWA GENERATOR
Available at Gladiator Equipment Nisku

Generator Type Revolving Field Brushless AC
Continuous output, 1 phase 6.5 kW
Standby output 7.2 kW
Amps, 1 phase, 120V 54A
Amps, 1 phase, 240V 27A
Rated Frequency - Regulation 60Hz + 0.25%
Rated speed, 60Hz 3600 rpm
Sound level, no load at 23 feet 62 dB(A)
Sound level, full load at 23 feet 64 dB(A)
DIESEL ENGINE
Make, model and type Kubota Z482
Emission certifi cation US EPA Tier 4 Final
Design features Indirect Injection, Naturally Aspirated
Displacement 29.23 cu. in. (.479 L)
Continuous rated output 11.3 hp (8.4 kW) @ 3600 rpm
Starting system Electric 12V DC
Internal fuel capacity 9.5 gallons (36.4L)
Fuel consumption, full load .68 gal./hr (2.6L/hr)
Fuel consumption, 3/4 load .55 gal./hr (2.1L/hr)
Fuel consumption, 1/2 load 0.47 gal./hr (1.8L/hr)
Fuel consumption, 1/4 load 0.36 gal./hr (1.4L/hr)
Total coolant capacity 1.04 gallons (4.0L)
Total oil capacity / oil class .68 gal. (2.6L)
PHYSICAL CHARACTERISTICS
Dimensions (L x W x H) 42.7” x 25.0” x 34.9” (1095 x 640 x 895mm)
Unit dry weight 744 lbs (335kg)

Disclaimer: We always strive to provide accurate and up-to-date information; however, specifications and equipment details may contain errors and are subject to change without notice. Photos and descriptions may not reflect exact configuration or condition. Please contact us for full details and to confirm equipment availability.
